- Size: 30
- Place of Origin: china
- Brand Name: FAME
- Model Number: 1220*2440
- Weight: 26000.000 kg
4mm aluminum compostie board with PVDF
Standard size | 1220*2440*3mm*4mm*5mm |
Special size | Width:1000mm /1050mm/1220mm/1250mm/1270mm/1500mm/1550mm/1570mm
Length: any length as your requirements (no limited) |
Total thickness | 2mm/3mm/4mm/5mm/6mm |
Aluminum skin | 0.12/0.15/0.18/0.21/0.25/0.30/0.35/0.40/0.45/0.50mm |
Material: | A) Front: Aluminum alloy sheet coated with fluoro-carbon resin(PVDF) and polyester resin (PE) roasting painting |
Application | Interior&exterior wall decoration/Signage/repaired building/advertising boards/ billboards/roofs/boats, automobile skins and so on. |

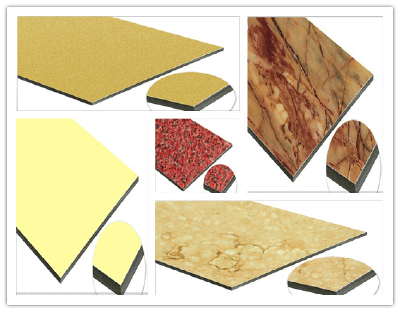

1.Name
ALUMINUM COMPOSITE PANEL/ACP
2.Category
Polyester resin ACP/PVDF ACP/Fireproof ACP/Brush finish ACP/Mirror finish ACP/Granite ACP
3.Structure
3.1 Protection film 0.08mm France
3.2 Surface:
PVDF coated KYNAR500 from USA/ It can be used for 20 years without fade /coat thickness 25um
PE coated (Polyester resin/ It can be used for 10 years without fade /coat thickness 16um
3.3 Aluminum sheet southwest aluminum company in China/0.12-0.5mm
3.4 polymer film 0.03-0.05mm Korea
3.5 Plastic/pink color is fireproof panel/general panel with black/white color (we are the first one who
made the research for fireproof acp in this field.)
4.Use
Aluminum composite panel can be used as decoration of the repaired building, advertising boards, billboards,
roofs, external and internal walls/boats, automobile skins and so on.
5.Certificate:
ISO 9001 international quality certificate
ISO 14021 environment system certificate
GB/T 17748-1999
CE&SGS certificate in factory
- Size: 30
- Place of Origin: china
- Brand Name: FAME
- Model Number: 1220*2440
- Weight: 26000.000 kg
After-sale Service :
PVDF Coating ACP: | We offer 20 years guarantee |
PE Coating ACP: | We offer 5~8 years guarantee |
Claim: | Pls contact our After-sale service department within 60 days after you receive the cargo |
Process: | If the quality meet any problem, pls provide us the photos which describe the problem |
Solution: | A: If the problem is small, we will send the same quantity free in new shipment |
B: If the problem is big, except the goods value, we will pay for all installation charges for these problem panels | |
