- Place of Origin: Shandong, China (Mainland)
- Brand Name: FAME
- Model Number: 1220x2440
- Weight: 5.500 kg
- :
- :
- :
- :
Specifications

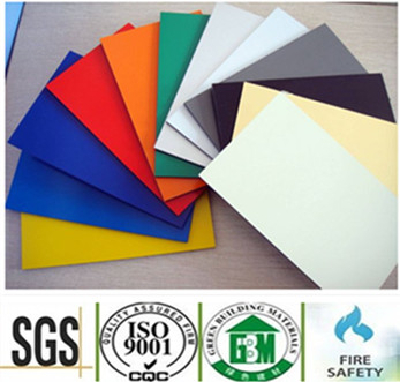

Aluminium Composite Panel
Origin:Shandong,China(Mainland)
Brand Name:FAME Usage:Exterior
Surface :PVDF or PE coated
Aluminium Composite Material/sandwich panel
Aluminum Composite panel are composed of a non-toxic polythene core and sandwiched between two aluminium sheets coated with superior quality PVDF (Polyvinylidene Fluoro Carbon, minimum 70% resin) or Polyester to ensure durability, stability, corrosion and weather resistance.
Specification
a)Country of Origin;China(mainland)
b)Size;1220x2440x3mm,
1220x2440x4mm
1220x2440x5mm
c)Width;880mm-1550mm
d)Lengh;1220mm-6000mm as requested
f)Panel total thickness;2mm,3mm ,4mm,5mm
ACP panel Dimensions
Standard size | 1220*2440*3mm and 1220*2440*4mm |
Width | Max:1550mm |
Length | Max:6000mm |
Thickness | 2mm,3mm,4mm,5mm |
Aluminum sheet tickness | 0.15mm~0.5mm |
Weight | 5.5kg/m2 base on 1220*2440*4mm |
Nonstandard | sizes are available according to your requirement |
Materials:
a)Surface coating;PVDF or Polyester
b)Core;Normal PE core or FR(Fire resistance)PE core(Standard;B1)
Application:
a)Widely be used in interior and exterior wall decoration
b)Desk and shelf for exhibition
c)Renew the exterior wall of the old building
d)Billboard, signboard,advertisement panel
ACP panel Applications
A) Can be widely used in galleries, exhibitions, saloons, stores, offices, banks, hotels, restaurants, and apartments .
B) Other kinds of buildings: as ideal decorative materials for the outer-wall and inner-wall of buildings.
C) Kitchen cabinets, billboards, signboards, tunnels and subway interiors.
D) Ceilings, eaves, balconies, partitions and interior decorations.
E) Telephone booths, vehicle bodies, and industrial usages.
F) Re-decoration of the old building
- Place of Origin: Shandong, China (Mainland)
- Brand Name: FAME
- Model Number: 1220x2440
- Weight: 5.500 kg
- :
- :
- :
- :
Standard size | 1220*2440*3mm*4mm*5mm |
Special size | Width:1000mm /1050mm/1220mm/1250mm/1270mm/1500mm/1550mm/1570mm
Length: any length as your requirements (no limited) |
Total thickness | 2mm/3mm/4mm/5mm/6mm |
Aluminum skin | 0.12/0.15/0.18/0.21/0.25/0.30/0.35/0.40/0.45/0.50mm |
Material: | A) Front: Aluminum alloy sheet coated with fluoro-carbon resin(PVDF) and polyester resin (PE) roasting painting |
Application | Interior&exterior wall decoration/Signage/repaired building/advertising boards/ billboards/roofs/boats, automobile skins and so on. |
